In the
early
1960s, a
standards
committee,
today
known as
the
Electronic
Industries
Association,
developed
a common
interface
standard
for data
communications
equipment.
At that
time, data
communications
was
thought to
mean
digital
data
exchange
between a
centrally
located
mainframe
computer
and a
remote
computer
terminal,
or
possibly
between
two
terminals
without a
computer
involved.
These
devices
were
linked by
telephone
voice
lines, and
consequently
required a
modem at
each end
for signal
translation.
While
simple in
concept,
the many
opportunities
for data
error that
occur when
transmitting
data
through an
analog
channel
require a
relatively
complex
design. It
was
thought
that a
standard
was needed
first to
ensure
reliable
communication,
and second
to enable
the
interconnection
of
equipment
produced
by
different
manufacturers,
thereby
fostering
the
benefits
of mass
production
and
competition.
From
these
ideas, the
RS232
standard
was born.
It
specified
signal
voltages,
signal
timing,
signal
function,
a protocol
for
information
exchange,
and
mechanical
connectors.
|
Pin
assignments
|
|
If the
full
EIA232
standard
is
implemented
as
defined,
the
equipment
at the far
end of the
connection
is named
the DTE
device
(Data
Terminal
Equipment,
usually a
computer
or
terminal),
has a male
DB25
connector,
and
utilizes
22 of the
25
available
pins for
signals or
ground.
Equipment
at the
near end
of the
connection
(the
telephone
line
interface)
is named
the DCE
device
(Data
Circuit-terminating
Equipment,
usually a
modem),
has a
female
DB25
connector,
and
utilizes
the same
22
available
pins for
signals
and
ground.
|

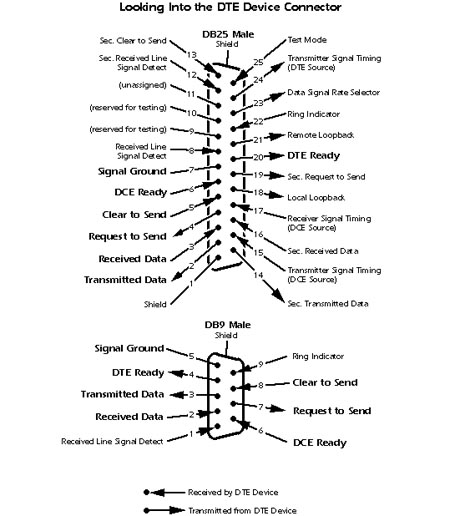

DTE
Connections
|
|
Here is
the full
EIA232
signal
definition
for the
DTE device
(usually
the PC).
The most
commonly
used
signals
are shown
in bold: View
|
|

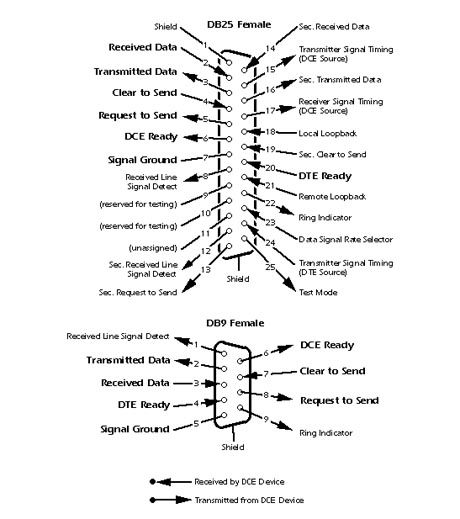

DCE
Connections
|
|
This shows
the full
EIA232
signal
definition
for the
DCE device
(usually
the
modem).
The most
commonly
used
signals
are shown
in bold: View
|
|
DB-9
Standard
Cable:
|
|
This shows
a 9-pin
DTE-to-DCE
serial
cable that
would
result if
the EIA232
standard
were
strictly
followed.
All 9 pins
plus
shield are
directly
extended
from DB9
Female to
DB9 Male.
There are
no
crossovers
or
self-connects
present.
Use this
cable to
connect
modems,
printers,
or any
device
that uses
a DB9
connector
to a PC's
serial
port.
This
cable may
also serve
as an
extension
cable to
increase
the
distance
between a
computer
and serial
device. View
|
|
DB9
Loopback
Connector
|
|
A loopback
connector
usually
consists
of a
connector
without a
cable and
includes
internal
wiring to
reroute
signals
back to
the
sender.
This DB9
female
connector
would
attach to
a DTE
device
such as a
personal
computer.
When the
computer
receives
data, it
will not
know
whether
the
signals it
receives
come from
a remote
DCE device
set to
echo
characters,
or from a
loopback
connector.
Use
loopback
connectors
to confirm
proper
operation
of the
computer's
serial
port. Once
confirmed,
insert the
serial
cable you
plan to
use and
attach the
loopback
to the end
of the
serial
cable to
verify the
cable.
In this
case,
Transmit
Data joins
to
Received
Data,
Request-to-Send
joins to
Clear-to-Send,
and DTE-Ready
joins to
DCE-Ready
and
Received
Line
Signal
Detect. View
|
|
DB9 Null
Modem
Cable
|
|
Use this
female-to-female
cable in
any
application
where you
wish to
connect
two DTE
devices
(for
example,
two
computers).
A
male-to-male
equivalent
of this
cable
would be
used to
connect
two DCE
devices.
The
cable
shown here is
intended
for RS232
asynchronous
communications
(most
PC-based
systems).
View
|
|
Useful
Connection
Options
|
|
DB25
to DB9
Adapter
|
DB9
to DB25
Adapter
|
DB25
All-Line
Direct
Extension
|
DB25
Loopback
Connector
|
DB25
Null Modem
(no
handshaking)
|
DB25
Null Modem
(standard
handshaking)
|
|
