Used Radios, High Quality Commercial Receiver & Transmitter Modules for homebrewers:

2KW Solid State linear from EB Nera

Three power blocks (each of 400W) using two pieces of BLX 15 in push-pull (built-in Driver BLX13) Class AB1, produces 1200W (2KW PEP) in to 50 ohms. Drive requirement less than 5W.

Complete with power blocks, driver Amplifier (BLX 92A), power splitter, power combiner and SWR sense circuit. Each block fitted with thermal switch which runs a powerful blower when needed (runs on 220V AC).

Reassembled one-to-one as EB Nera chassis was damaged. Original Low Pass filter board supplied with amplifier which should be fitted at amplifier output with band switch.

USD 600 + 200 forwarding anywhere in the world. Requires 48V/30Amp Regulated power supply (not included).

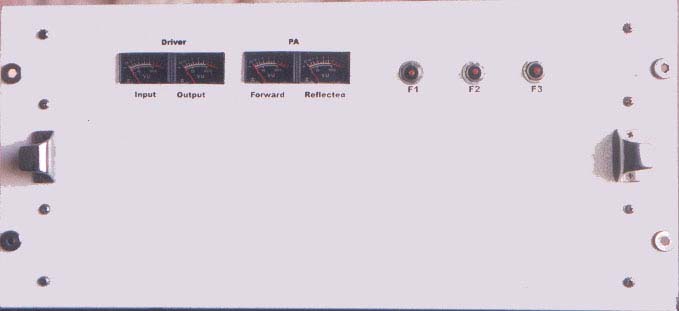

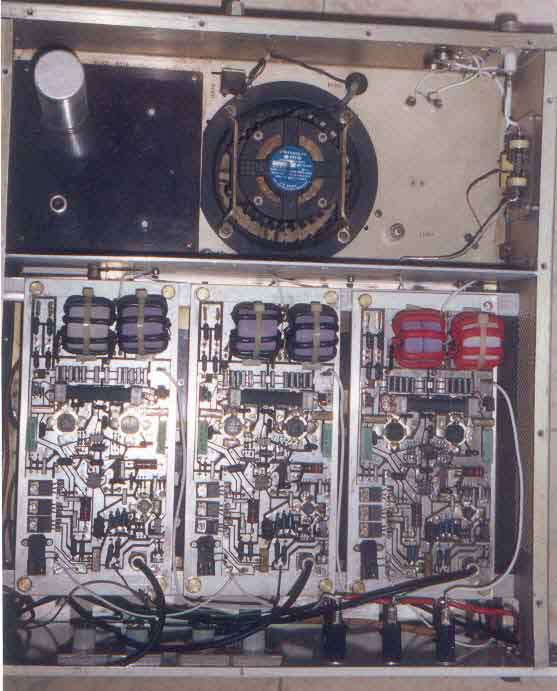

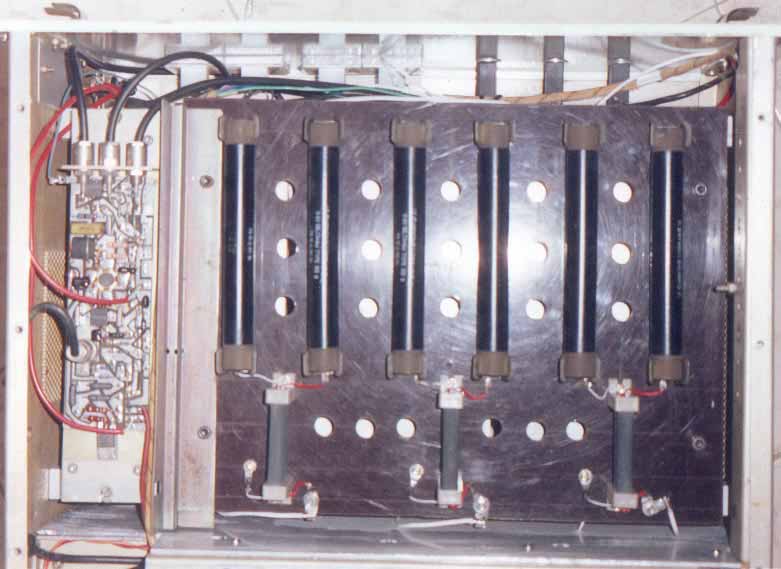

View pictures:            Top                    Bottom                Front Panel

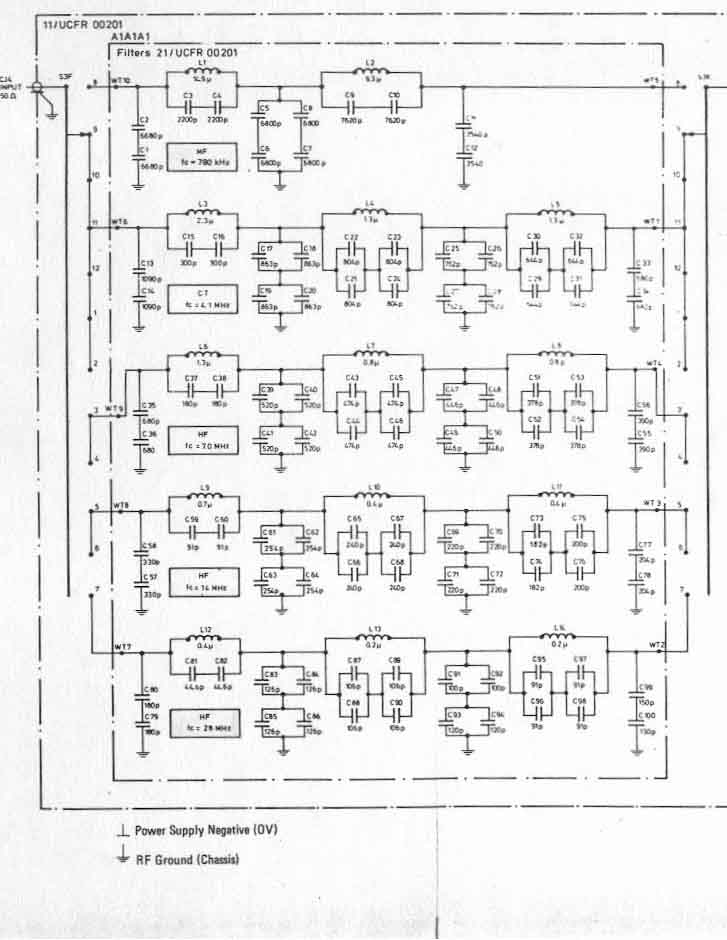

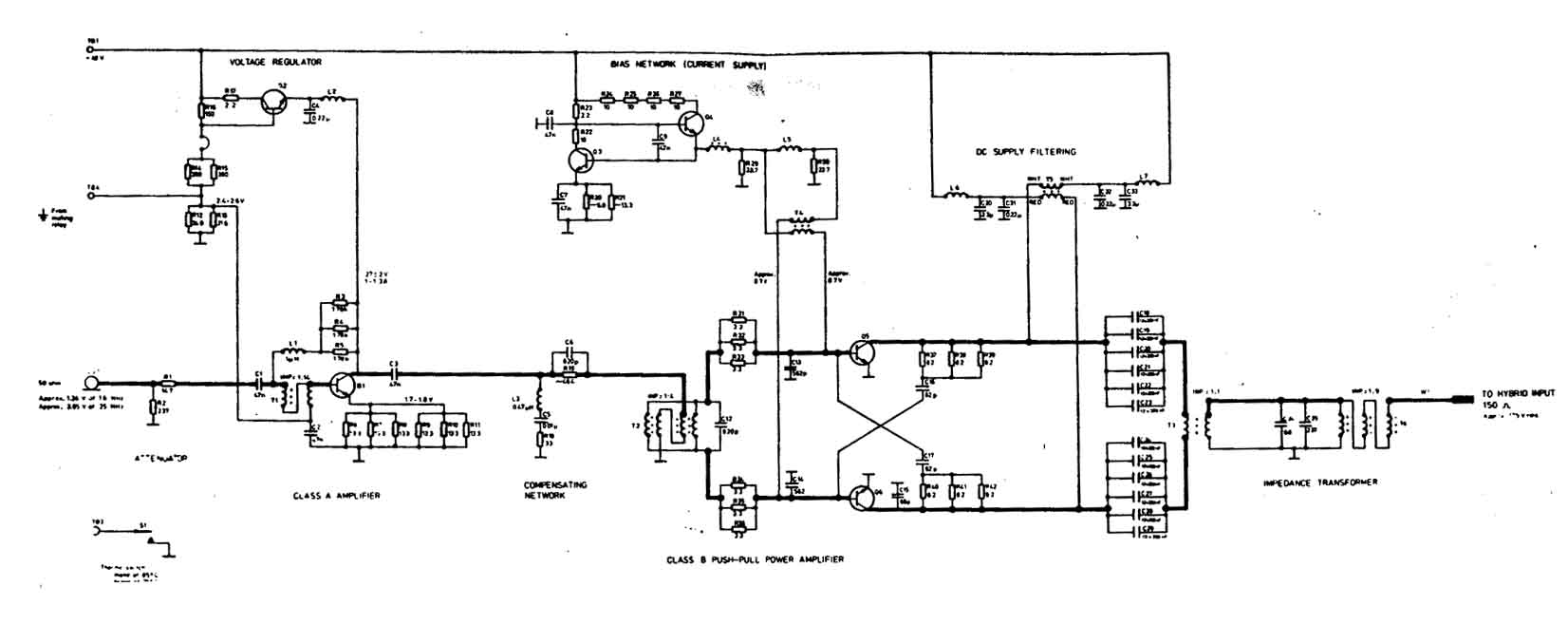

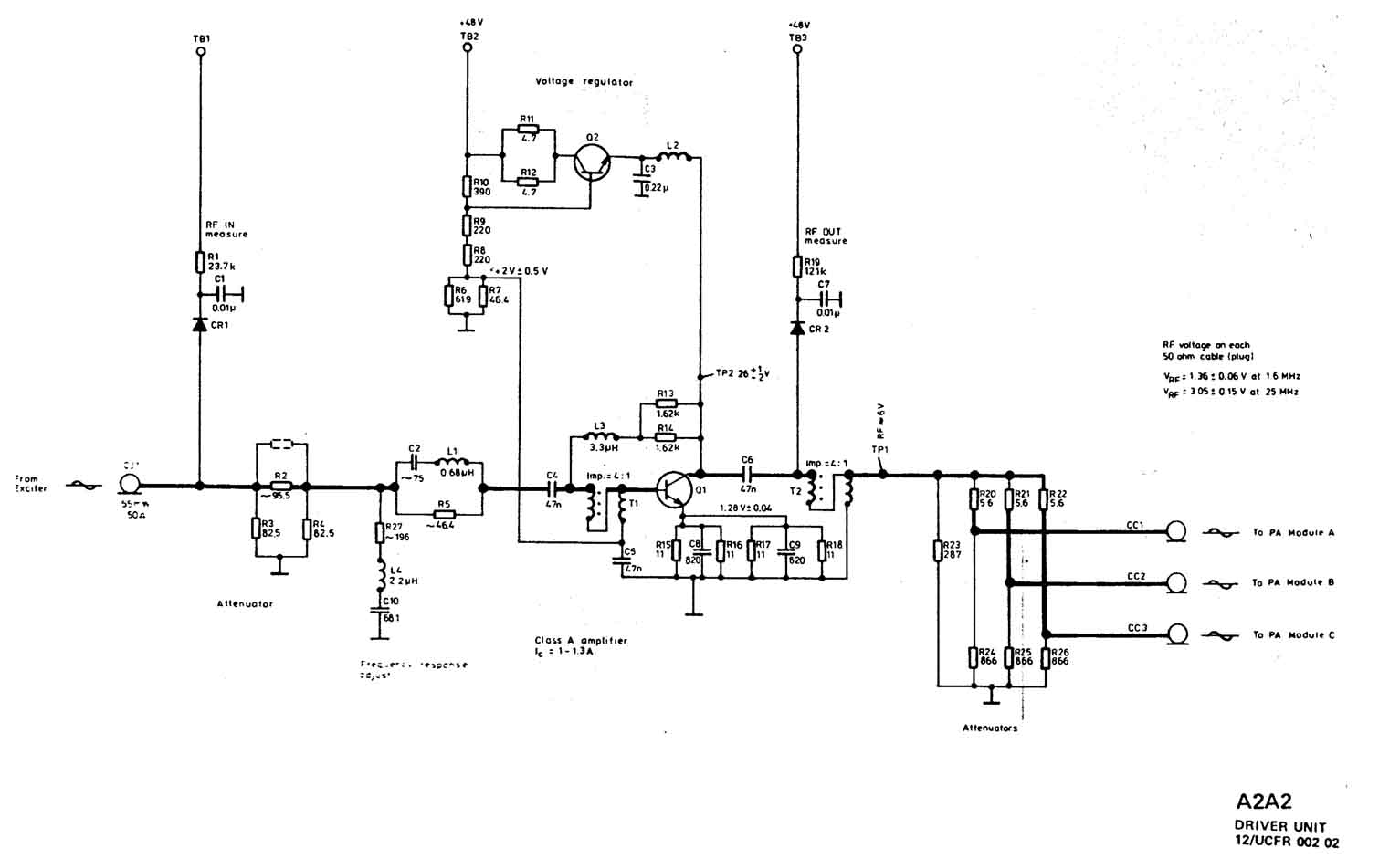

View Circuits:             PA                     Driver                 Combiner          Low pass filter

Antique Receiever      View Picture

Hammarlund HQ-180A General Coverage Receiver in top working condition. Contact for availability & price.

Dancom Denmark : Fully functional and tested, Receiver & SSB Exciter Modules.Includes: Complete set of boards for a SSB Exciter, TCXO, RF Front end, IF boards, IF Filters, Synthesizer modules etc.

Detailed List & Prices

Sailor Denmark :  Fully functional & tested modules for R1117 Receiver and S1300 exciters. Includes: VCXO, TCXO, SSB Filters, RF Front ends, Power Amplifiers etc.

Detailed List & prices

Electromekeno Denmark: Very high quality marine Rx and TX modules: Each module enclosed in aluminium shielded box and ready with edge connector strip. Includes: OCXO board, Synthesizer boards, AF board, SSB Modulator board, WBA, 1W WBA (0-30Mhz), VCO boards etc

Detailed List & Prices
