100W MRF 455 Solid State Power Amplifier

This is a simple Class AB1 solid state amplifier kit available with double sided PTH PCB, using motorola  2 pieces of MRF 455 transistors, one opamp. IC -LM 723 for bias regulation and Input/Output Toroids (From Amidon).

Kit is easy to build. Circuit diagram is given elsewhere on this website.

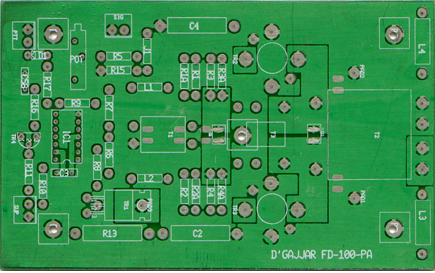

PCB Front Side:

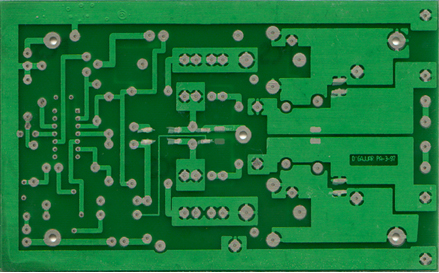

PCB bottom side:



For availability of this kit Please visit http://shopping.hamradioindia.com  Kit includes: above PCB, 2XMRF455 Transistors, Toroids from Amidon (Unwound)
